Binoculars Install Instructions

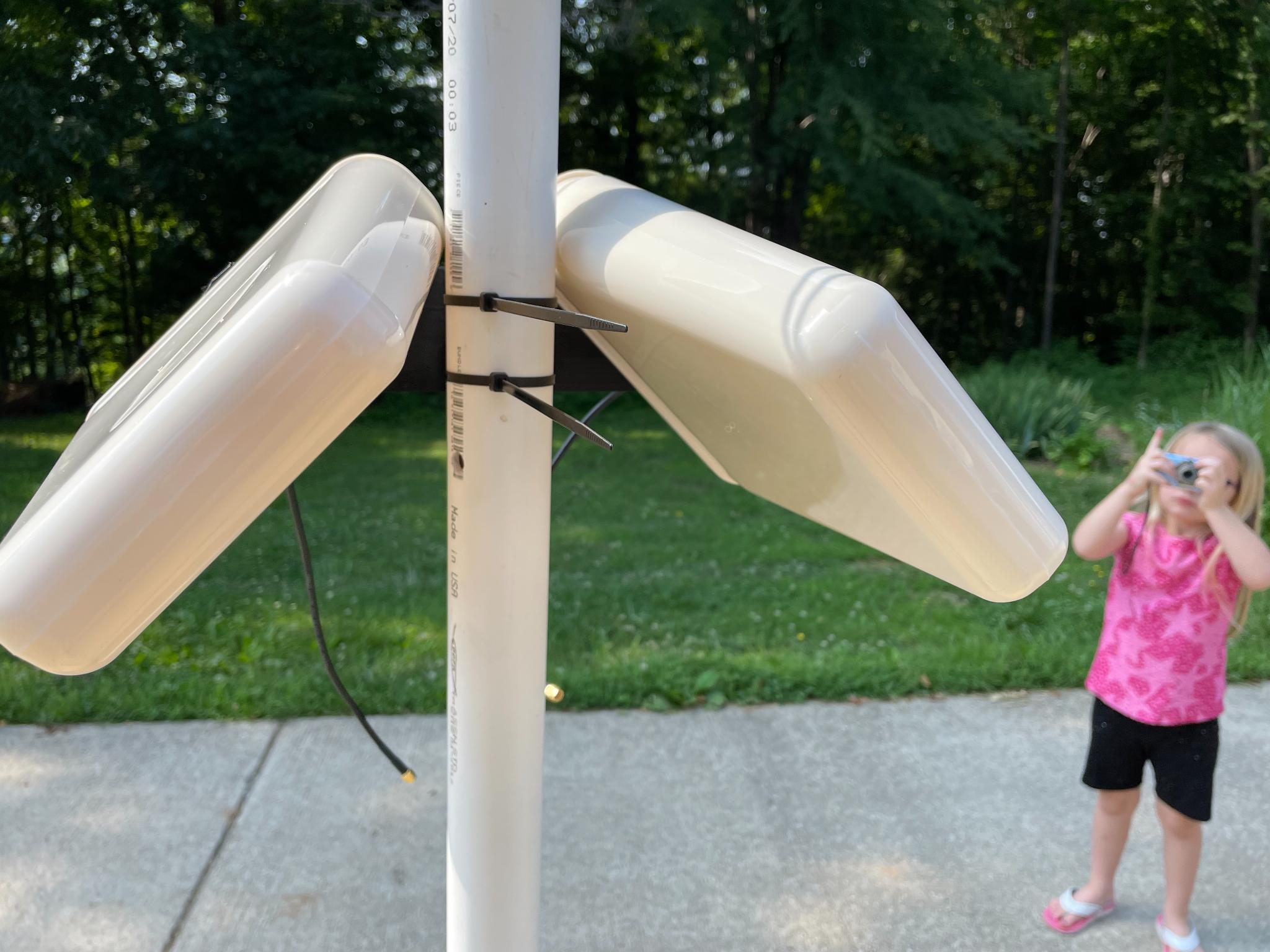

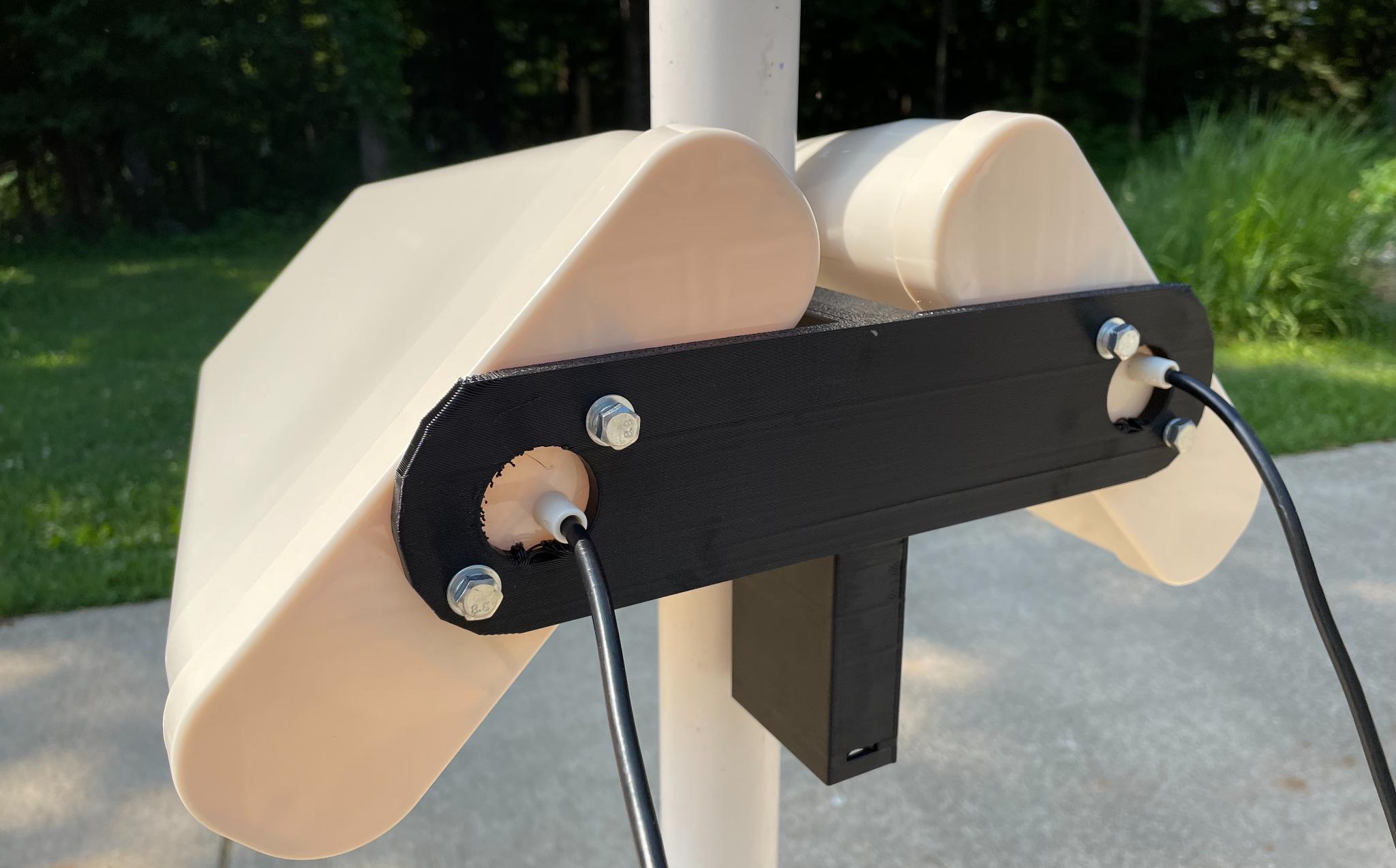

Install LPDA antennas as pictured.

The modem box will go between the LPDA antennas.

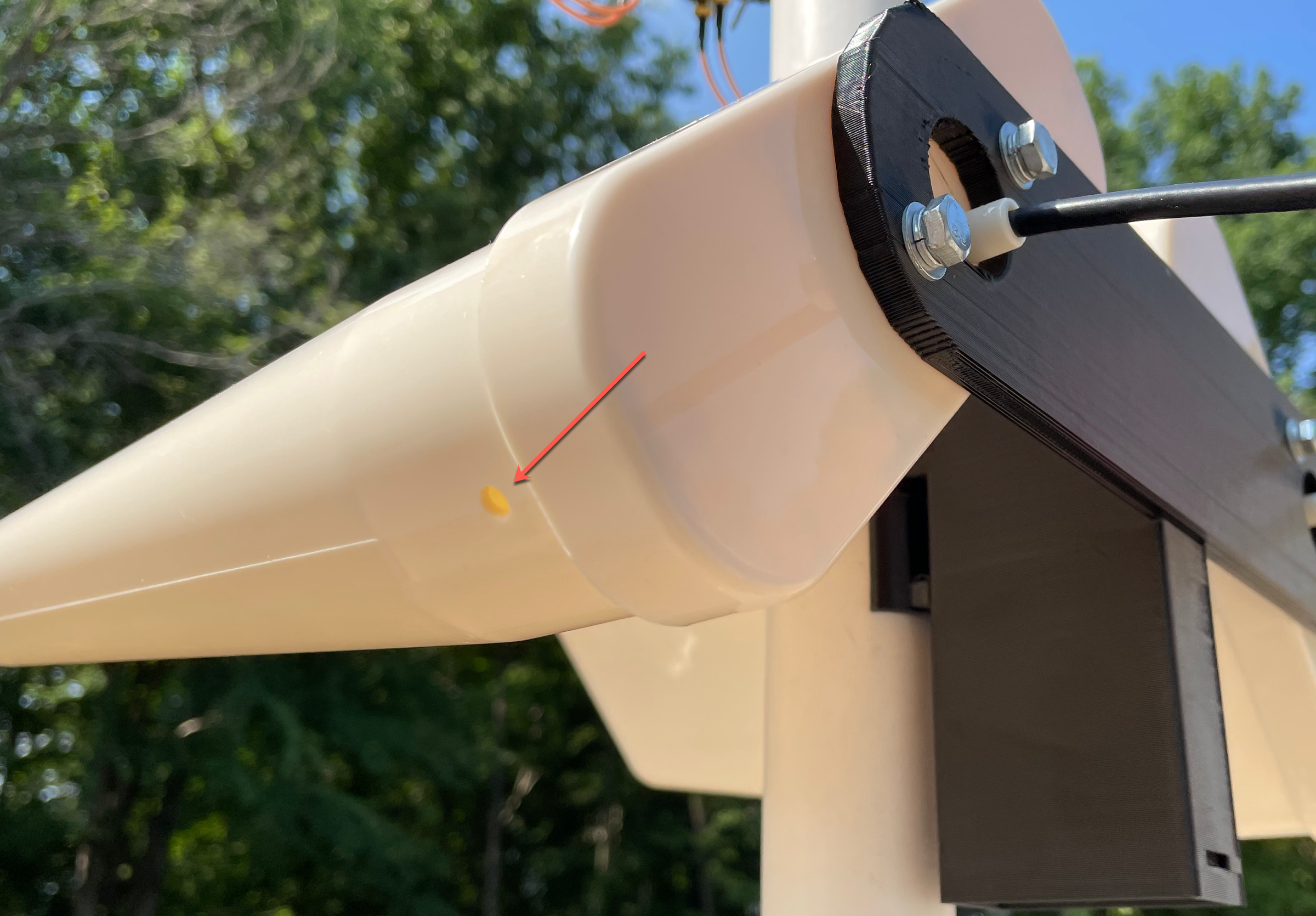

Please make sure to take note of the 'weep' hole, make sure it's pointing down.

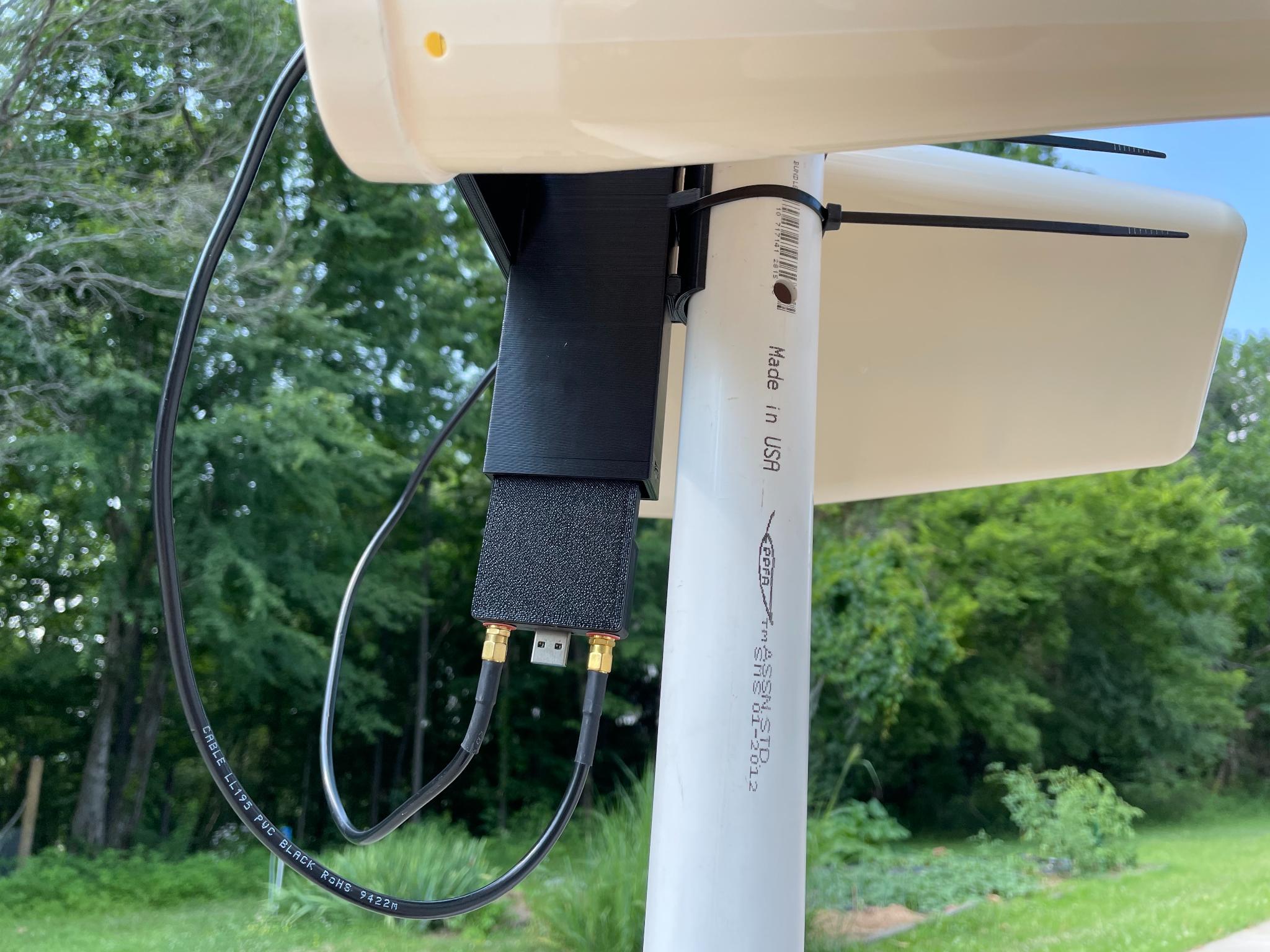

2.) Mount the Binoculars on a pole with strong zip ties or hose clamps.

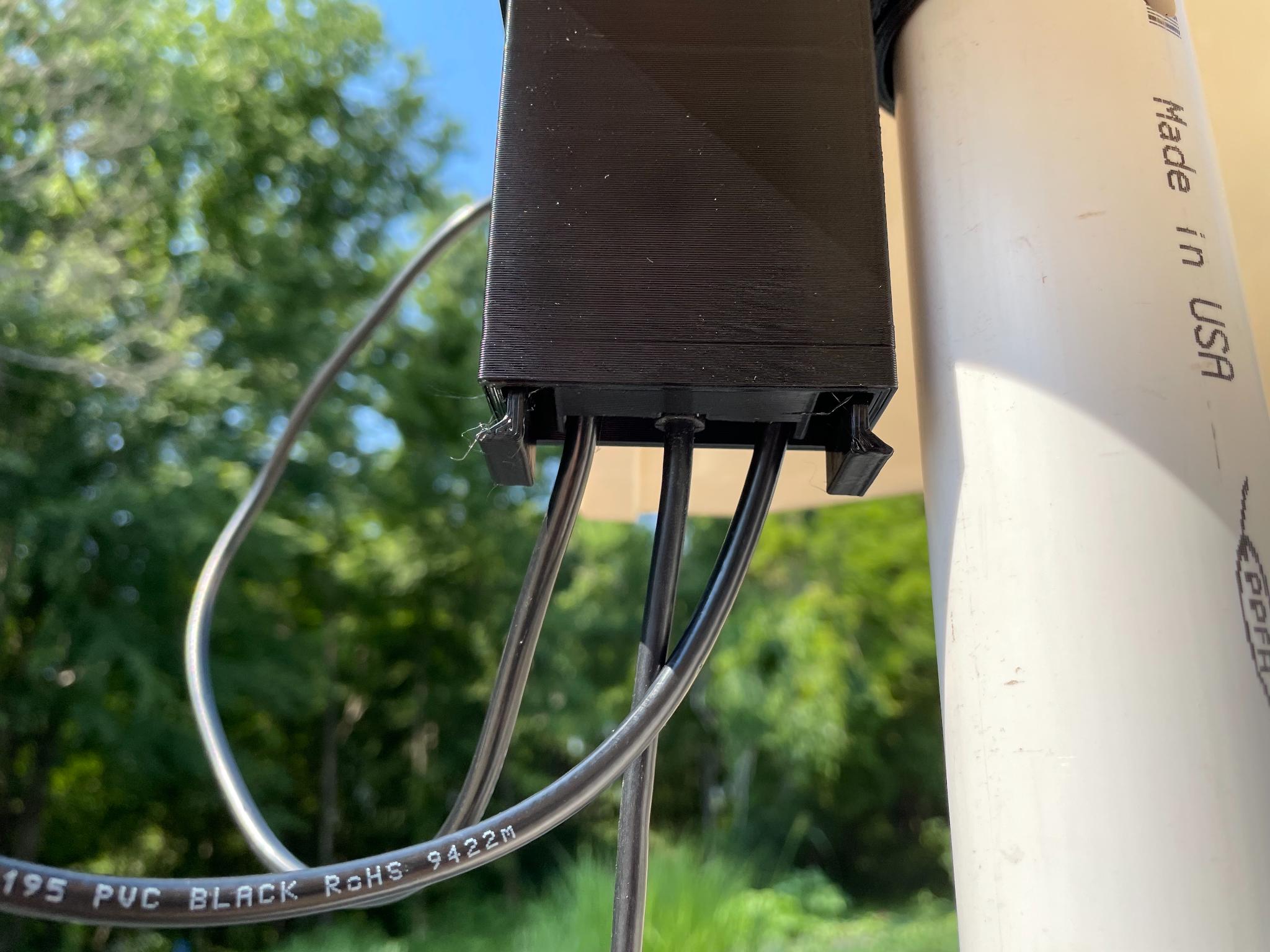

3.) Attach cables and insert binoculars "feet"

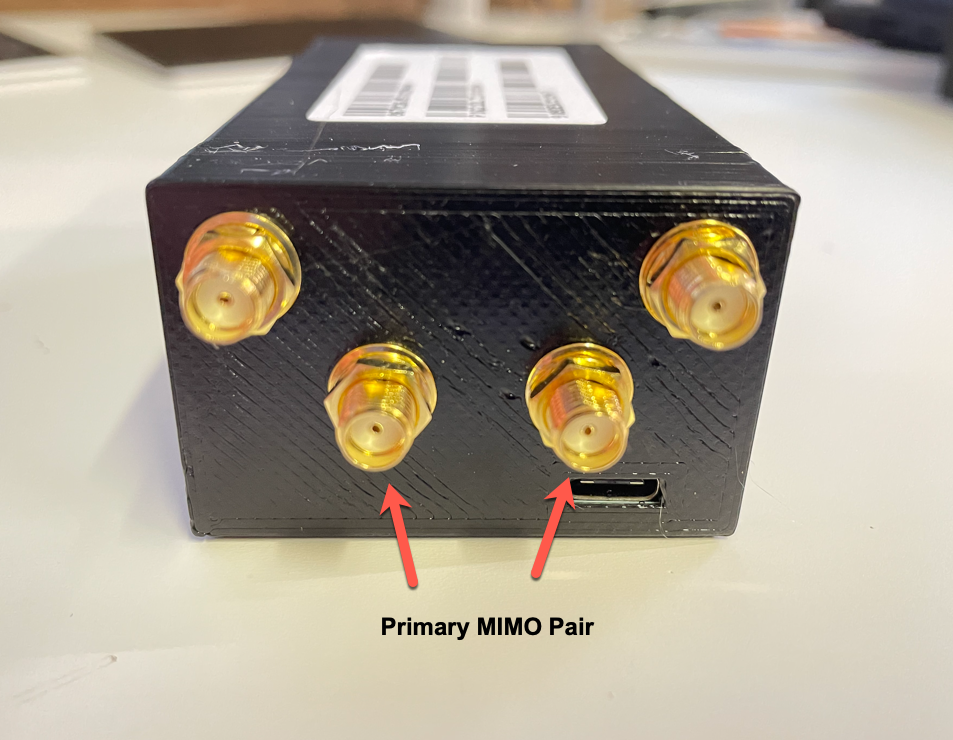

For 5g models, when using the binoculars, attach antennas to the primary MIMO pair.

You can leave the secondary MIMO pair unhooked in the binoculars.
